OPYO-EDU 2X / 5X Motorized Digital Forensic Comparison Microscope Binocular A18.1830

A18.1830 Motorized digital microscope comparison,with Motorized Working Table , newly developed in 2013, is suitable to be used for forensic science laboratory research work, for compare all kinds of bullets, cartidge cases, cutting objects, paper documents and etc. It can be fully controled by manual or computer software. Built-in high resolution digital color camera can output realtime image and video to computer, under professional crime image analysis software, it will be ideal tools for forensic scientists research work. With full comparison system function, and with steady quality at very competitive price, digital microscope comparison is your best choice, wholesale digital microscope comparison at factory price now!

★ Total Magnification 2x~240x
★ Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint
★ 6 Holes Click Stop Nosepiece
★ LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x, 6x
★ Auxiliary Lens 0.4x and 2.0x Included
★ Motorized/Manual Control to switch in full left/right, split-image or overlapping image comparision
★ Motorized/Manual Control working stage X/Y/Z 3D movement
★ Motorized/Manual Control round stage rotating in clockwise/counterclockwise direction
★ Magnification Correcting System, with Correcting Lens
★ Separation Line Adjusting System, with Special Designed Metal Adjust Driver
★ 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
★ 5W LED Cold Light, High Brightness, Brightness Adjustable
★ Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
★ All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
★ Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
★ Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,
★ Professional forensic image analysis software
★ Motorized Working Table included
★ 80~240V Wide Range Voltage

A18.1830 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table
Magnification		2x~240x
Head		0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
Eyepiece		WF10x/22mm, High Eyepoint
		WF20x/12mm, High Eyepoint
Nosepiece		6 Hole Click Stop Nosepiece
Objective		LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x
		Auxiliary Lens 0.4x, 2.0x
Working Distance		101mm
View Field		Dia. 2.3~62mm
Magnification Correcting		Magnification Correction System, With Correcting Lens
Separation Line Adjusting		Seperation Line Adjust System In Back, With Special Designed Adjust Driver
Working Stage		Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm
		Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
		Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Light Source		12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs
		5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs
		Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs
		Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs
		Transmit Bottom Light (Built-in Working Stage)
		Ultraviolet Light Lens,2pcs
		Filters: Red, Blue, Yellow, Green,2pcs Each Color
Adapter		0.5x CCD Adapter For Digital Camera,1pc
		Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
CCD Camera		Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm
Software		Professional Forensic Image Analysis Software
		Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image
		Motorized/Manual Control Working Stage X/Y/Z 3D Movement
		Motorized/Manual Control Round Working Stage Rotation +/- Direction
		Motorized/Manual Control To Change Objective Magnification (Optiaonal)
Working Table		A18.1830 Include Motorized Working Table, Size 60*120mm, Height 65mm, Motorized Up/Down 160mm
Power		80~240V Wide Range Voltage

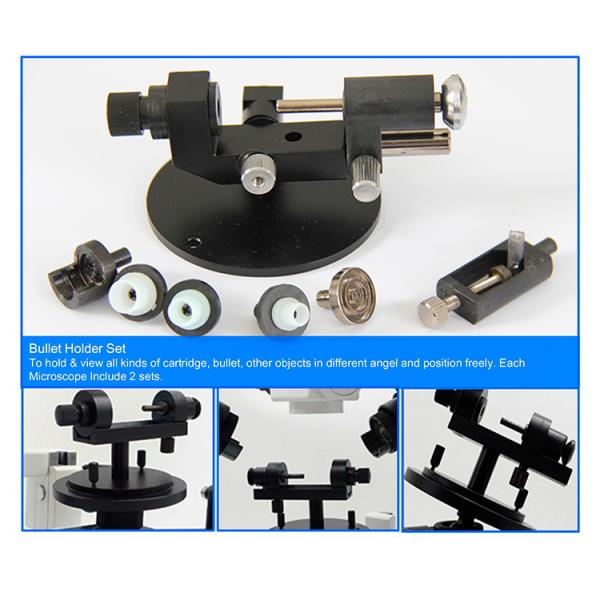

Bullet Holder		Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
Dimension		Instrument Size 40*60*72cm
Optional Accessories
Light Source		150W Cold Light Source, With Optical Fiber & Light Collector				A56.1821

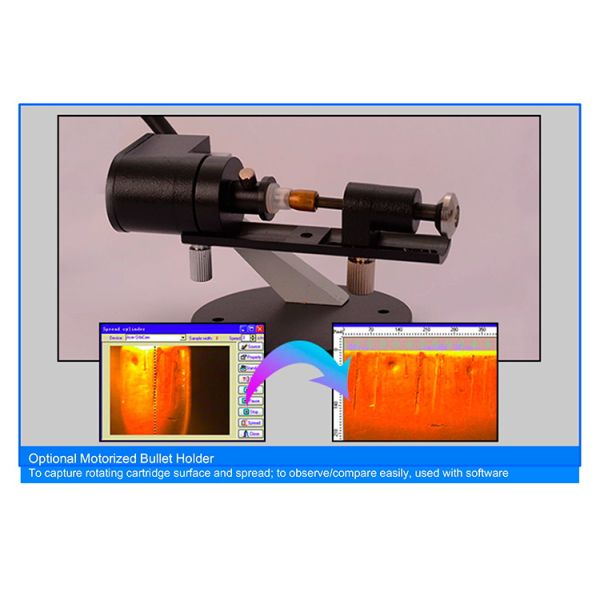

Bullet Holder		Motorized Bullet Holder 1 Set				A54.1813
Nosepiece		Motorized 6 Hole Nosepiece				A54.1814
